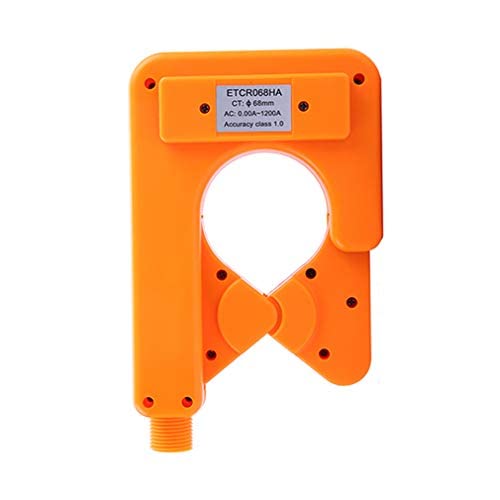

ETCR068HA AC Leakage Current Sensor Meter Tester High Voltage Clamp Current Transformer 0.00mA～1200A Range for AC Current Higer Harmonic Current Phase Power Factor Measurement Etc

Main Function: 1. Detecting of AC leakage current/current, higher harmonic current, phase, electric energy, power, power factor, etc. 2. Range: 0.00mA～1200A AC 3. Resolution: 0.01A 4. Accuracy Class: 1.0 5. Turn Ratio : 4000:1 6. Safety Class: CATⅢ600V 7. CT Structure: Clamp 8. CT Size : φ68mm Technical Specifications Range:0.00A～1200A AC Resolution: 0.01A Accuracy Class:1.0 Phase Error:≤2° Turn Ratio:400:1 Reference Load:≤20Ω Clamp Size:φ68mm Weight:550g Output interface: Output line: 2P white terminal, 180m long Working Frequency:45Hz～100KHz Insulating Strength:AC3700V/rms ( between the core and coil) Safety Class:CATⅢ600V Output Mode:Inductive current output (can output current signal or voltage signal) Working Temperature:-15℃～50℃ Remark:The battery compartment can hold 4 x 1.5VAAA alkaline dry batteries to provide power for secondary development.(battery not included)

• ❤❤(1)ETCR068HA high voltage clamp leakage current sensor is suitable for high precision detection of AC current, high-order harmonic current, phase, electric energy, power, power factor and so on.
• ❤❤(2)It has a unique automatic plug-in structure, easy to use, no need to disconnect the tested line, non-contact measurement, safe and fast, especially suitable for line fault detector.
• ❤❤(3)It is widely used in electric power, communications, meteorology, railway, oil field, construction, metrology, scientific research and teaching units, industrial and mining enterprises and other fields.
• ❤❤(4)The iron core of ETCR068HA high voltage clamp leakage current sensor is made of permalloy and double-layer shielding technology. The influence of external magnetic field is minimal, which ensures high precision, high stability and high reliability of year-round uninterrupted measurement.
• ❤❤(5)The transformer can output current and voltage signals, and the measuring range, output signal and output interface of the transformer can be customized according to customer requirements.
