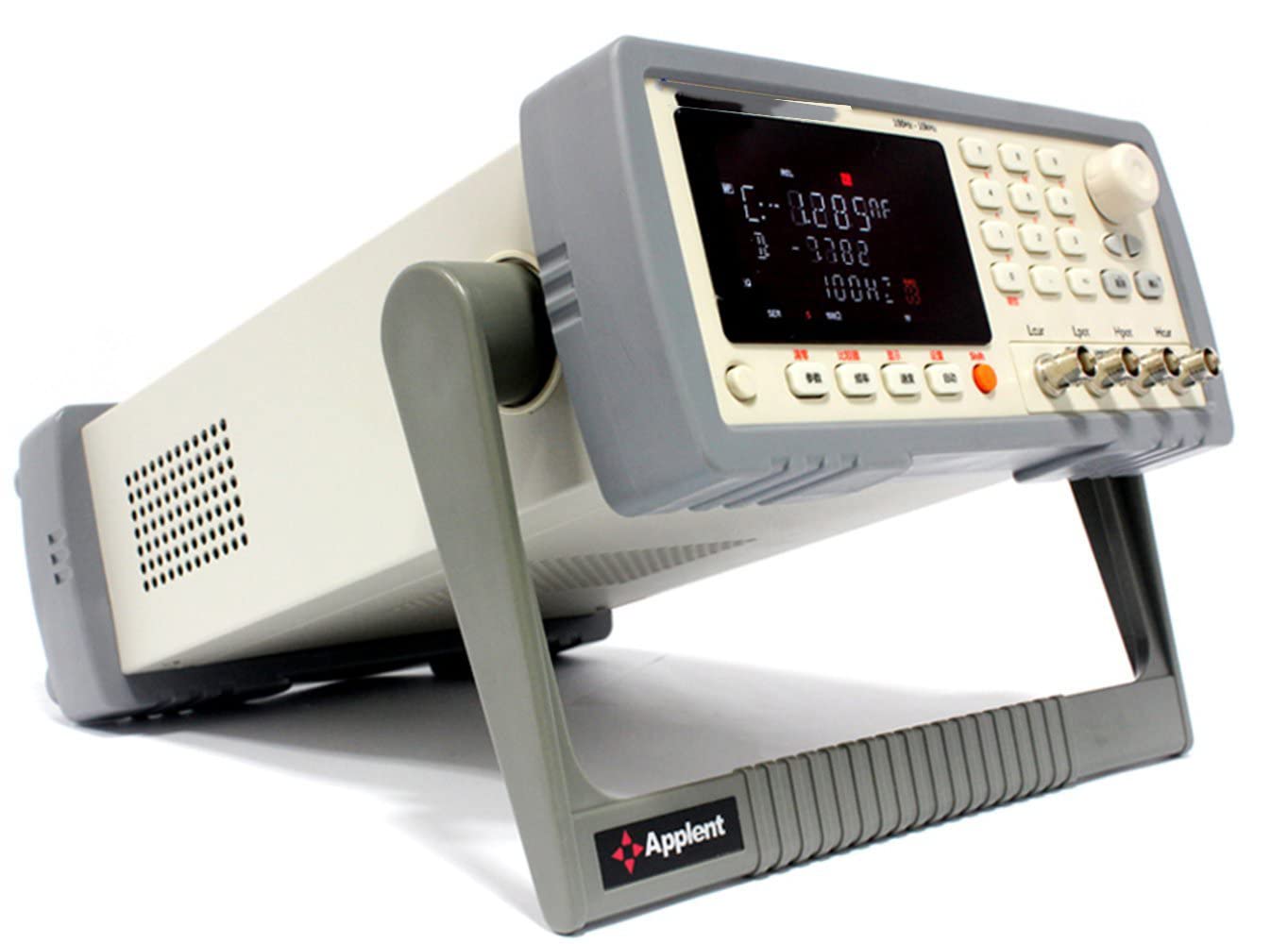

High Precision Digital LCR Meter Tester with L C R Z D Q θ(deg) θ(rad) RS232C Accuracy 0.1% for use on Production Lines and Laboratories
4.0 (68 items)
Limited Time SaleUS$441.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210911352 | Release Date | 2026/04/04 | List Price | US$294.00 | Model Number | 210911352 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification Parameters:L,C,R,Z,D,Q,θ(deg),θ(rad) Monitor Parameters:D,Q,θ(deg),θ(rad) Accuracy:0.10% Frequency:100Hz, 120Hz, 1kHz, 10kHz Display Range:L: 0.01μH-9999H C: 0.01pF - 9999μF R,Z: 0.0001Ω - 99.99MΩ Q: 0.0001 - 9999 θ(deg): -90.00°- 90.00° θ(rad): -3.1416 – 3.1416 Δ%: -9999% - 9999% D: 0.0001 ～ 9.9999 Source Resistance:30Ω 100Ω Range:Automatic and manual with 6 ranges Display Max:principle parameter: 99999; sub parameter: 99999 Signal Level:0.1Vrms, 0.3Vrms 1Vrms Speed:15 times/second, 5 times/second, 3 times/second Comparator:20 groups files record, 5-bin sorting, beep indication Adjustment:Open & short sweep frequency and point frequency Interface: RS232C (SCPI programmable language) Handler interface VFD Display, keypad lock and data hold function Voltage: 198V AC - 250V AC Frequency: 50Hz Power: Max 15VA 264mm(Width)x107mm(Height)x350mm(Depth) 4kg ATL501: Test cable ATL607: Test fixture ATL600: Short-circuit slice ATS810: Data acquisition software
| UPC | 665059189702 |
|---|---|
| Brand Name | VTSYIQI |
| Style Name | Digital |
| Item Weight | 4 Kilograms |
| Manufacturer | VETUS INSTRUMENTS |
| Power Source | Battery Powered |
| Item Dimensions | 15.75 x 5.91 x 7.87 inches |
| Measurement Type | LCR Meter |
